THE PERFECT CHOICE TO MODERNIZE ANY HOME
Clopay® Avante® garage doors are constructed with aluminum and glass panels, lending a clean and modern aesthetic to any home or building. Avante® doors come with a five-year warranty on the finish and a three-year warranty on hardware. Avante AX/AXU is characterized by the following features:
Durable Construction
Durable, low-maintenance 2-1/8″ commercial grade aluminum frame with many glazing options
Customizable options
Frame and solid aluminum panels available in choice of anodized and powder-coated finishes. Polyurethane-insulated rails and stiles available on AXU models.
Door Reinforcement
WINDCODE® door reinforcement product available for high wind load applications.
Insulation
Tempered full-view glass, acrylic or solid aluminum panel options. Insulated glass garage door panels are available for increased energy efficiency.
Environmental Assurance
Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:
- California SB 1013
- Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
- Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
- New Jersey A-5583/S-3919 – Greenhouse Gas Bill
- Meets ASHRAE® 90.1 Title 24 and IECC® (International Energy Conservation Code) 2021 Section C406.9 Air Infiltration requirements.

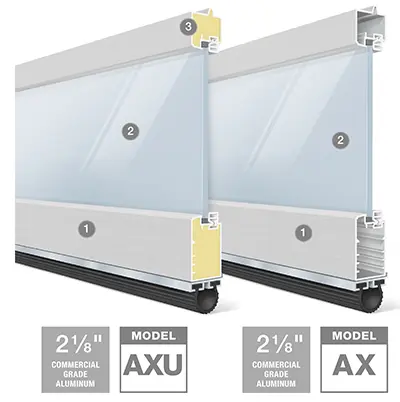

Clopay® Avante® garage doors are manufactured in the United States by expert craftspeople. These glass and aluminum doors can be built with tempered glass (optional insulated glass), acrylic, polygal or solid aluminum frame panels. Also available is a polyurethane-insulated frame option with R-value of 3.8 (with clear insulated glass). The replaceable vinyl bottom weather seal in a rust-free aluminum retainer protects your garage (or any other room where your door is installed) from the outside elements.
- Made of 2-1/8” durable commercial grade aluminum, making it virtually maintenance-free and long-lasting
- Model AXU made of 2-1/8″ durable commercial grade aluminum with polyurethane insulation with an R-value of 3.8 (with clear insulated glass)
- Integral section joint seal for further reduction of air and water infiltration
- Smooth flat frame edge design for a more contemporary look.
- Reinforcing fin included on doors wider than 14’. Standard doors 12’ and under do not use built-in reinforcing fin. Usage on widths 12’2” to 14’ depend upon glass weight. WINDCODE® doors may vary.
- Aluminum
- Glass
- Intellicore® Polyurethane Insulation
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability.
DOOR DESIGNS
AX/AXU
Clear Glass
Gray Tinted Glass
Bronze Tinted Glass
Mirrored Glass
Obscure Glass
White Laminate Glass
Frosted (Satin Etched) Glass Or Frosted Acrylic
Clear Acrylic
Gray Acrylic
White Acrylic
Clear Polygal
Bronze Polygal
Clear Anodized (Aluminum Panel)
*Satin etched is used in the AX/AXU models.
COLORS
Clear Aluminum (Anodized)
Standard White
Bronze (Painted)
Chocolate (Painted)
Bronze (Anodized)
Black (Anodized)
Dark Bronze (Anodized)
HARDWARE
Handles
Optional Aluminum Grip Handle
